LÖWE Mobile Electric Scissor Lift Platform – 300 kg – 3.0 / 3.9 / 4.8 m
Mobile Electric Scissor Lift Platform – LÖWE Profi SABE3.0 / SABE3.9 / SABE4.8

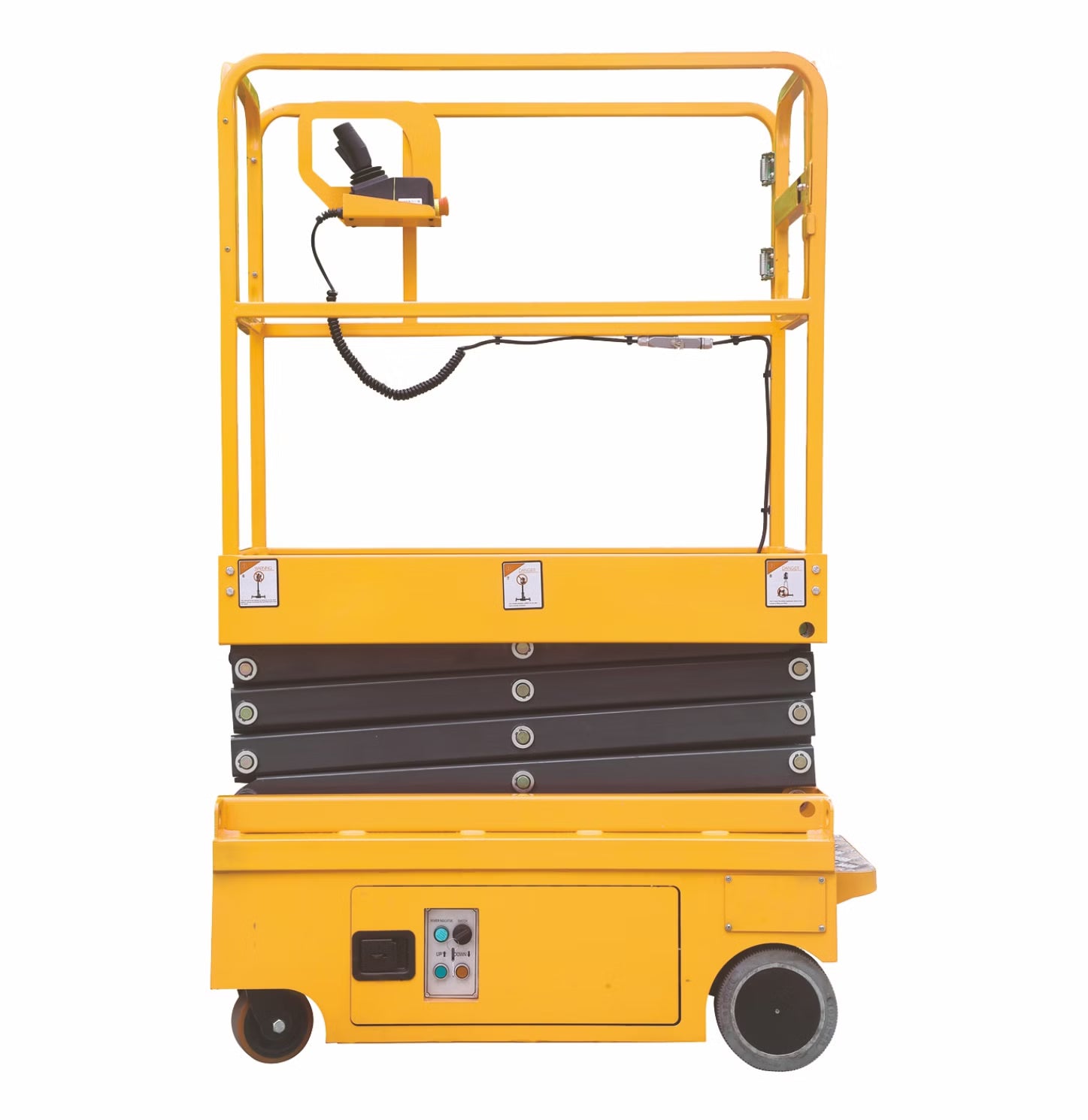

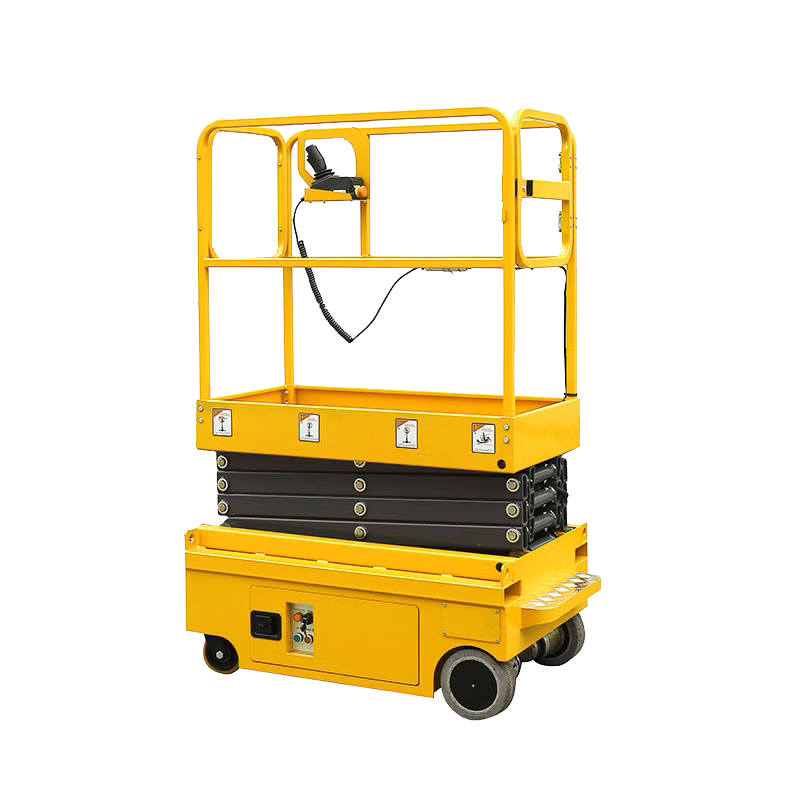

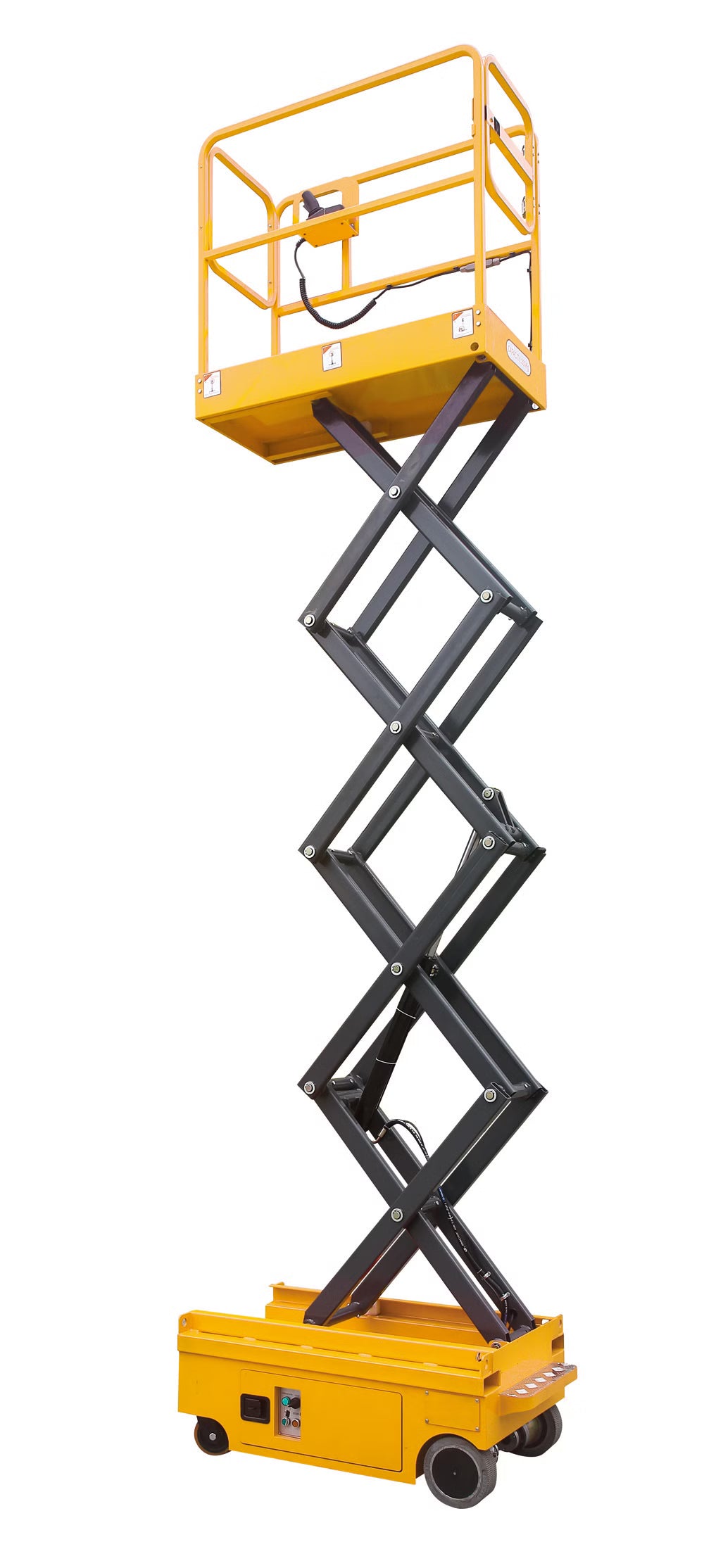

The LÖWE Profi SABE series consists of compact, maneuverable, fully electric scissor lift platforms designed for safe and efficient work at height, particularly indoors and on paved surfaces.
Thanks to the electric drive and lifting system, all models operate quietly and without direct emissions, making them suitable for sensitive working environments. The robust scissor mechanism combined with simple, intuitive controls enables precise operation even in confined spaces.
All three models offer a 300 kg load capacity, providing sufficient capacity for operators, tools and materials.
Key Features
-
Fully electric drive
Electric driving and lifting for convenient positioning, including when the platform is raised. -
300 kg load capacity
All models are designed for a maximum load of 300 kg. -
Compact design
Suitable for narrow passages, confined work areas and locations with limited space. -
Quiet, emission-free operation
Particularly suitable for indoor environments, warehouses, production facilities and public buildings. -
Smooth and stable lifting
Controlled raising and lowering of the platform for safe and precise work. -
Simple and safe operation
Clear controls combined with low-voltage safety technology. -
Excellent maneuverability
A small turning radius allows precise movement in confined areas.
Typical Applications
The LÖWE Profi SABE series is particularly suitable for:
-
Maintenance and servicing
-
Assembly and installation work
-
Warehouses and logistics facilities
-
Production and manufacturing halls
-
Building services and facility management
-
Indoor areas with limited working space

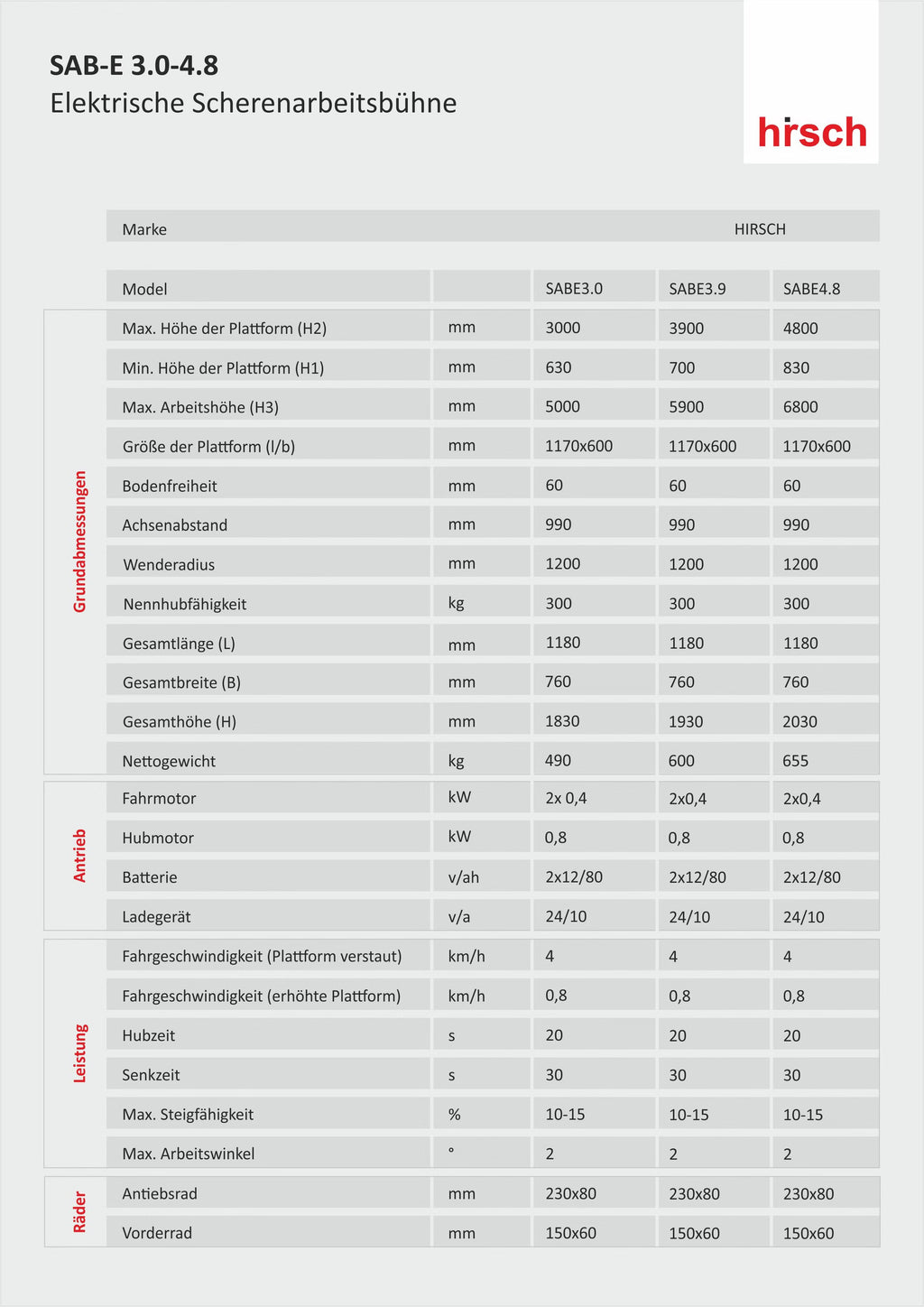

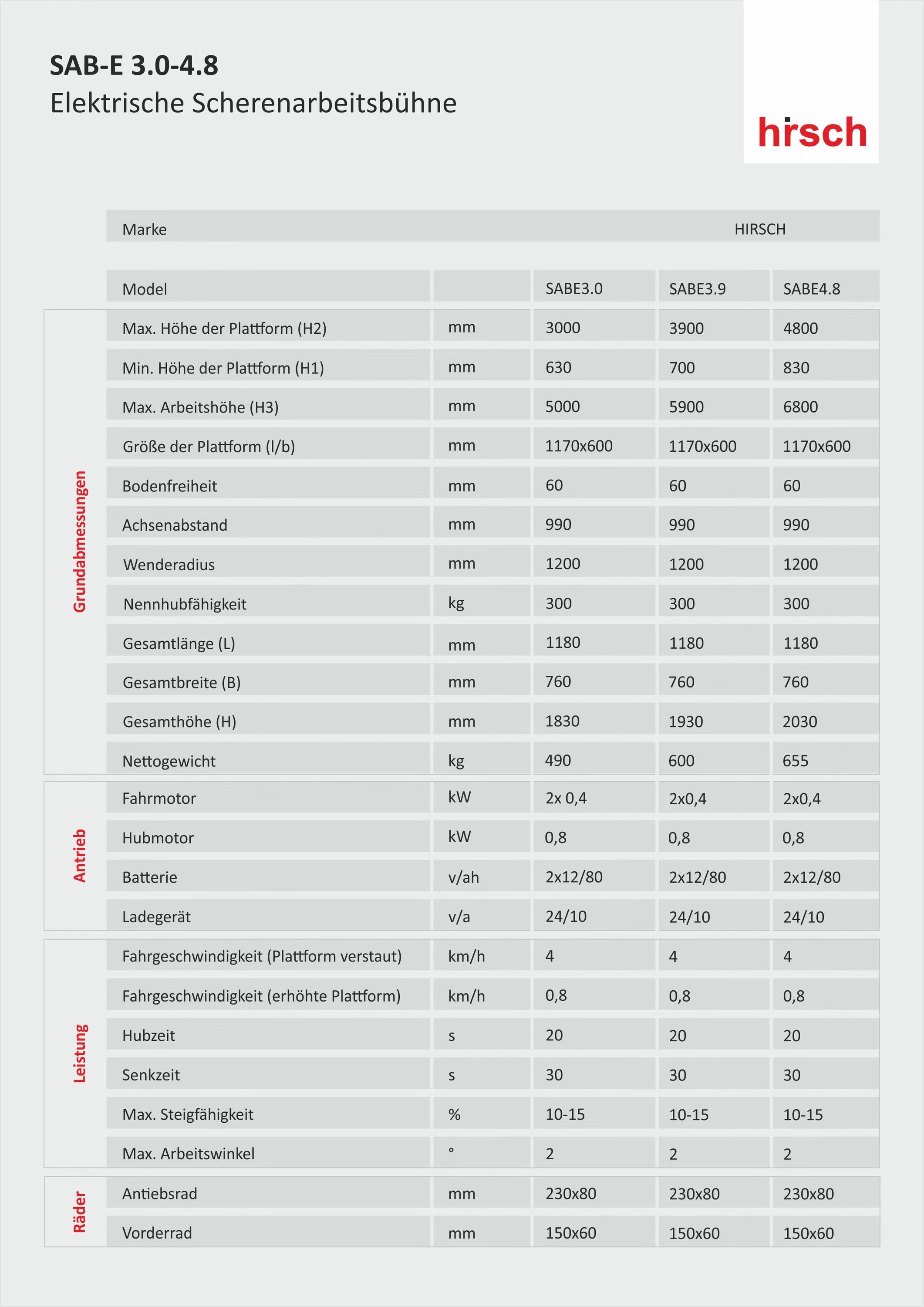

Technical Specifications
Profi SABE3.0
| Specification | Value |
|---|---|
| Working height | 5,000 mm |
| Maximum platform height | 3,000 mm |
| Minimum platform height | 870 mm |
| Load capacity | 300 kg |
| Gradeability | 15–20% |
| Minimum turning radius | 1,400 mm |
| Travel speed, lowered | 4.0 km/h |
| Travel speed, raised | 1.5 km/h |
| Length | 1,300 mm |
| Width | 760 mm |
| Height | 1,870 mm |
| Platform dimensions (L × W) | 1,170 × 600 mm |
| Ground clearance | 60 mm |
| Drive wheel size | 230 × 80 mm |
| Front wheel size | 230 × 80 mm |
| Lift motor | 24 V / 0.8 kW |
| Battery | 2 × 12 V / 76 Ah |
| Charger | 24 V / 10 A |
| Total weight | 650 kg |
Profi SABE3.9
| Specification | Value |
|---|---|
| Working height | 5,900 mm |
| Maximum platform height | 3,900 mm |
| Minimum platform height | 950 mm |
| Load capacity | 300 kg |
| Gradeability | 15–20% |
| Minimum turning radius | 1,400 mm |
| Travel speed, lowered | 4.0 km/h |
| Travel speed, raised | 1.5 km/h |
| Length | 1,300 mm |
| Width | 760 mm |
| Height | 1,950 mm |
| Platform dimensions (L × W) | 1,170 × 600 mm |
| Ground clearance | 60 mm |
| Drive wheel size | 230 × 80 mm |
| Front wheel size | 230 × 80 mm |
| Lift motor | 24 V / 0.8 kW |
| Battery | 2 × 12 V / 76 Ah |
| Charger | 24 V / 10 A |
| Total weight | 700 kg |
Profi SABE4.8
| Specification | Value |
|---|---|
| Working height | 6,800 mm |
| Maximum platform height | 4,800 mm |
| Minimum platform height | 1,030 mm |
| Load capacity | 300 kg |
| Gradeability | 15–20% |
| Minimum turning radius | 1,400 mm |
| Travel speed, lowered | 4.0 km/h |
| Travel speed, raised | 1.5 km/h |
| Length | 1,300 mm |
| Width | 760 mm |
| Height | 2,030 mm |
| Platform dimensions (L × W) | 1,170 × 600 mm |
| Ground clearance | 60 mm |
| Drive wheel size | 230 × 80 mm |
| Front wheel size | 230 × 80 mm |
| Lift motor | 24 V / 0.8 kW |
| Battery | 2 × 12 V / 76 Ah |
| Charger | 24 V / 10 A |
| Total weight | 750 kg |

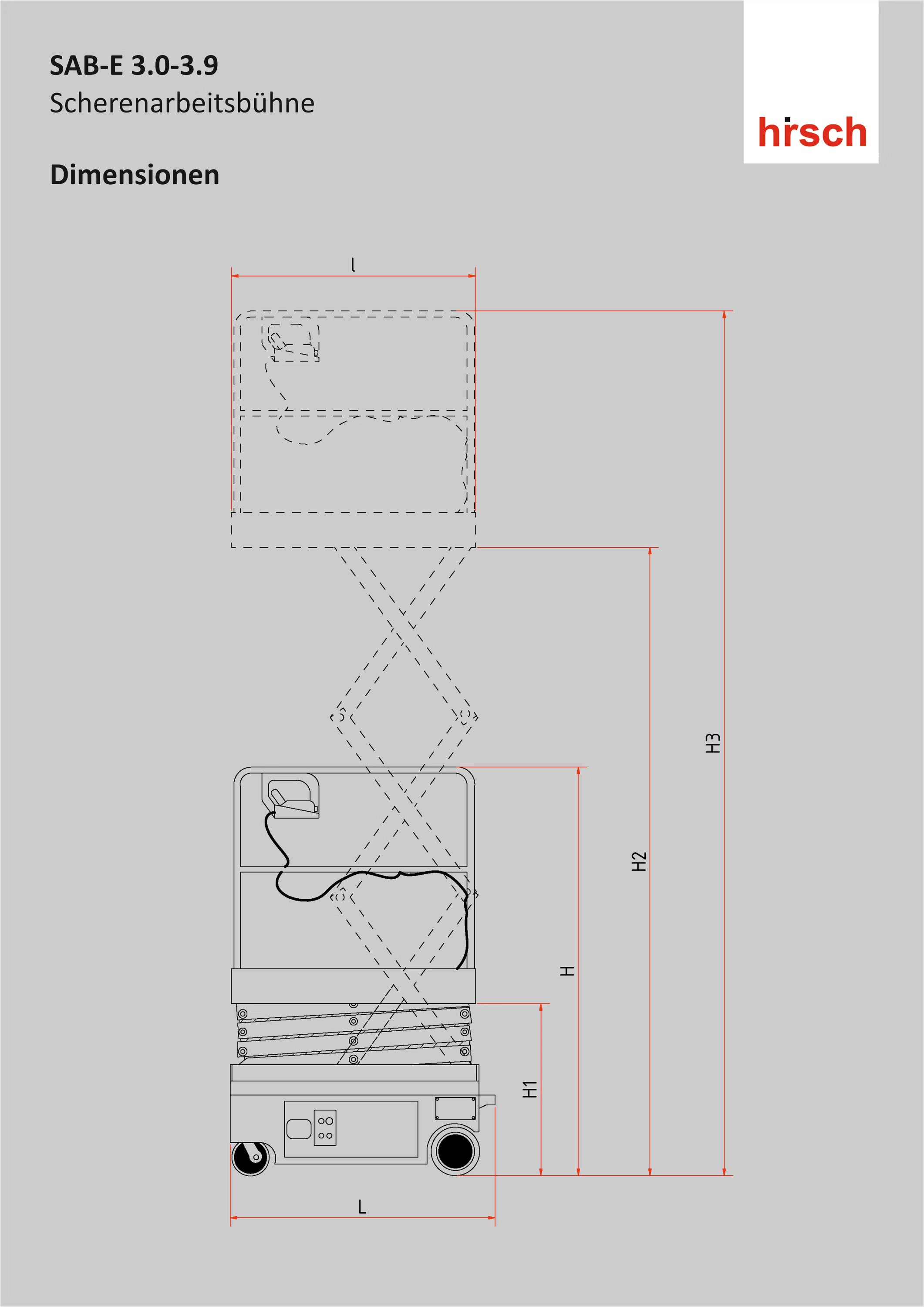

Model Comparison
| Specification | Profi SABE3.0 | Profi SABE3.9 | Profi SABE4.8 |
|---|---|---|---|
| Maximum platform height | 3,000 mm | 3,900 mm | 4,800 mm |
| Minimum platform height | 870 mm | 950 mm | 1,030 mm |
| Overall height | 1,870 mm | 1,950 mm | 2,030 mm |
| Working height | 5,000 mm | 5,900 mm | 6,800 mm |
| Load capacity | 300 kg | 300 kg | 300 kg |
| Total weight | 650 kg | 700 kg | 750 kg |
| Length | 1,300 mm | 1,300 mm | 1,300 mm |
| Width | 760 mm | 760 mm | 760 mm |
| Travel speed, lowered | 4.0 km/h | 4.0 km/h | 4.0 km/h |
| Travel speed, raised | 1.5 km/h | 1.5 km/h | 1.5 km/h |
| Minimum turning radius | 1,400 mm | 1,400 mm | 1,400 mm |
| Battery | 2 × 12 V / 76 Ah | 2 × 12 V / 76 Ah | 2 × 12 V / 76 Ah |
